Barbed Wire Machine

Specifications
CS-A Automatic barbed wire machine (Manufacture)
1 good design for you
2 competitive price

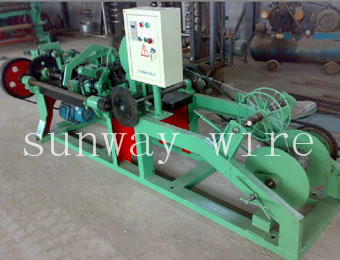

CS-A Normal Double twisted Barbed Wire Machine
Description of the machine
Barbed wire machine include three type such as CS-B single barbed wire machine CS-A type barbed wire machine and CS-C type positive and negative twist barbed wire machine
Parameter of the machine
Feature: High quality and inexpensive
Raw material: hot plated low carbon steel wire and plastic coated wire.
Motor: 3kw
Main drive shaft speed: 402r/min
Unit wire diameter: 2.2-3.0mm
Barbed wire diameter: 1.8-2.2mm
Torn distance: 3, 4, 5(inch) 76,102,127mm
Twist number: 3.5
Theoretical yield: 70kg/h
Weight: 1200kg
Dimension of main part: 1950*950*1300mm
Dimension of take –twisting part: 1760*550*760mm
